电能质量，需求一款散热风扇，尺寸40mm x 40mm x 15mm，12V供电，2线正负极，风量＞14CFM。请问有型号推荐吗？
可推荐使用台达旗下的AFB0412SHB这款散热风扇，性能参数与贵司需求相近，详细技术资料请查阅https://www.sekorm.com/doc/2495078.html
电阻轴电机，需求一款5015散热风扇，24V供电，2线正负极，风量15CFM左右。请问有合适型号推荐吗？单机使用1个
可初步推荐使用台达旗下的AFB0524HHB这款散热风扇，详细技术参数请查阅https://www.sekorm.com/doc/2498290.html
推荐一颗 12038散热风扇，24V供电，4线，台达的型号推荐一个
台达型号：PFB1224UHEP0 https://www.sekorm.com/Web/Search/keyword/PFB1224UHEP0

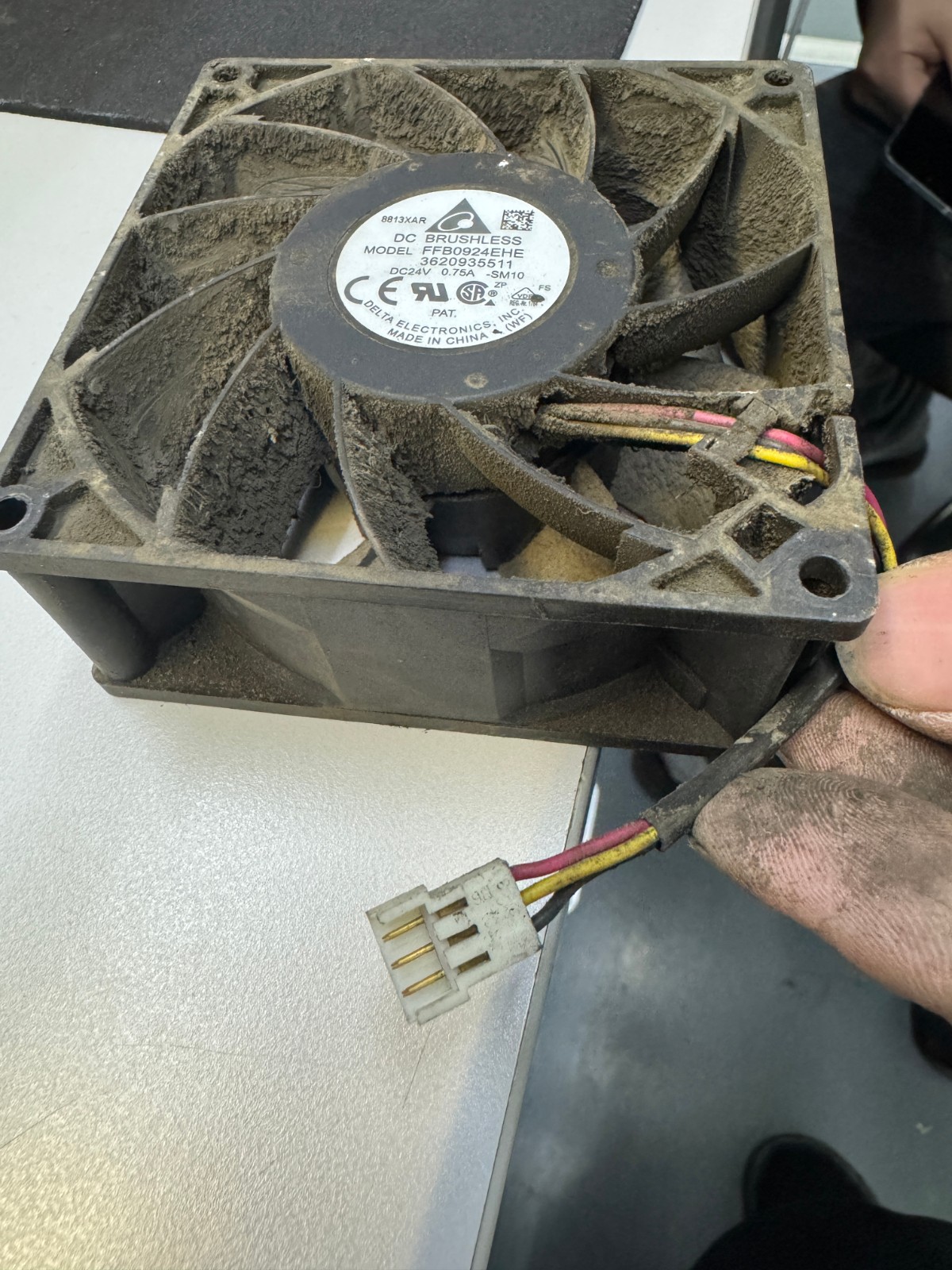

请问台达的这款PFB0924DHE散热风扇工作温度范围是多少呢？
您好，这款风扇的使用温度规格书标注为-10~60℃，如沟通，您产品的使用温度为-20~70℃，这款风扇可能不太合适，为您推荐PFB0824DHEP0，尺寸80*80*38mm，24V供电，风量135CFM左右，使用温度-20~70℃，平台有现货可供购买测试，产品链接：PFB0824DHEP0-风扇-台达 (sekorm.com)
VR项目，需求一款散热风扇，尺寸为30mm x 30mm，厚度在3mm/4mm左右，帮忙看看有没有符合这个尺寸的型号推荐？
可推荐使用台达旗下的KDB0305HA3-00C1J这款散热风扇，详细技术资料请查阅https://www.sekorm.com/doc/3070747.html
台达DC/EC风扇选型表
台达提供风扇厚度包含3.28~409mm,电压包含3~52V,转速包含1500~32500转，风量0.17CFM~20289CMH, 风压包含0.208inchH₂O~1807Pa，噪音包含10~83.5dB-A ,选型器包含普通风扇和EC风机，覆盖面广
|
产品型号
|
品类
|
尺寸(mm)
|
厚度(mm)
|
电压(V)
|
转速(RPM)
|
风量(CFM/CMH)
|
风压(mmH₂O/inchH₂O/Pa)
|
噪音(dB-A)
|
讯号
|
|
EFB0424VHD-CP0
|
DC风扇
|
40mm
|
20mm
|
24VDC
|
9000RPM
|
9.36CFM
|
9.65mmH₂O
|
37.3dBA
|
PWM/F00
|
台达提供IP68、IP56等专业型防护等级风扇，采用灌封胶密封，经久耐用防水防尘
台达生产制造工业级风扇，全部采用 IP68、IP56、IP55、IP54、IP53 和 IP51防护等级设计 ，采用先进制造生产工艺技术，经久耐用、安全可靠和防水防尘，可应对来自恶劣条件下预防灰尘和水进入。 防护等级风扇可通过恶劣环境的最严格测试。
台达（DELTA）IP50 风扇选型指南
台达 - EFB,QFR0912LJ-00P0,QFR0824HHP0,PFB0824UHEP0,QFR0912GJ-00P0,PFB,QFR0812MJ-00P0,THB,QFR0624GHP0,EFB1524SHGP0,QFR0824UHP0,QFR0824SHP0,EFB0424VHD-CP0,QFR0812LJ-00P0,PFB1224GHEP0,PFB1224HE-00P0,QFR0812GJ-00P0,PFB0924GHEP0,QFR,EFB0424LD-CP0,QFR0624EHP0,PFB0824GHEP0,PFB1224EHEP0,THB1548EG-00P0,QFR0624UHP0,THB1748MGP6,THB1548VG-00P0,QFR0912MJ-00P0,EFB0424HD-CP0,PFB0924DHEP0,PFB0824DHEP0,PFB1224SE-00P0,PFB1224UHEP0,PFB1224LE-00P0,THB1748BGP6,EFB1524LGP0,AFB0524VHDP0,QFR0624DHP0,AFB,EFB1524HHGP0,PFB0924EHEP0
台达（DELTA）IP68 风扇选型指南
台达 - EFB,PFB0924GHEP6,PFB0824GHEP6,EFB1524SHGP6,PFB,QFR0824HHP6,THB,QFR0812LJ-00P6,THD,THD0924HEP6,QFR0812MJ-00P6,QFR0812GJ-00P6,PFB1224GHEP6,QFR0624GHP6,QFR0624EHP6,QFR,PFB1224HE-00P6,QFR0624UHP6,PFB0924EHEP6,THB1748MGP6,PFB1224EHEP6,QFR0824UHP6,QFR0824SHP6,THB1548VG-00P6,THB1548EG-00P6,PFB1224SE-00P6,THB1748BGP6,PFB0824UHEP6,PFB0924DHEP6,PFB1224LE-00P6,EFB1524HHGP6,EFB1524LGP6
工业标准P0工业标准IP55工业标准IP68
本资料详细列出了多种工业标准风机型号的技术参数，包括尺寸、厚度、额定电压、电压范围、转速、风量、压力、噪音、信号类型、防护等级、盐雾测试、框架类型和叶轮材料。资料涵盖了不同型号的风机，针对不同的应用需求提供了全面的性能数据。
台达 - QFR0912GJ-00P5,PFB0924GHEP6,PFB0824GHEP5,PFB0924GHEP5,PFB0824GHEP6,QFR0912GJ-00P0,THB1748BGP0,QFR0812LJ-00P6,EFB0424LD-CP5,QFR0824UHP0,QFR0824UHP5,QFR0812LJ-00P0,PFB1224HE-00P0,QFR0624EHP6,PFB0924GHEP0,EFB0424LD-CP0,QFR0624EHP0,PFB0824GHEP0,PFB1224HE-00P5,PFB1224HE-00P6,PFB1224EHEP0,QFR0624UHP6,QFR0624UHP0,PFB0924EHEP6,PFB0924EHEP5,QFR0912MJ-00P0,PFB0924DHEP5,PFB1224EHEP6,PFB1224EHEP5,QFR0824UHP6,EFB0424HD-CP5,EFB0424HD-CP0,PFB0924DHEP0,PFB1224UHEP0,EFB1524LGP5,THB1748BGP6,THB1748BGP5,EFB1524LGP0,PFB0924DHEP6,PFB1224UHEP5,EFB1524LGP6,PFB0924EHEP0,QFR0912LJ-00P0,QFR0824HHP0,EFB1524SHGP5,PFB0824UHEP0,EFB1524SHGP6,QFR0812MJ-00P0,QFR0824HHP6,QFR0824HHP5,QFR0624GHP0,EFB0424VHD-CP5,THD0924HEP5,THD0924HEP6,EFB1524SHGP0,QFR0824SHP0,QFR0812MJ-00P6,QFR0812GJ-00P6,EFB0424VHD-CP0,QFR0812GJ-00P5,PFB1224GHEP6,PFB1224GHEP5,PFB1224GHEP0,QFR0624GHP6,QFR0812GJ-00P0,AFB0524VHDP5,THB1548VG-00P0,QFR0824SHP5,QFR0824SHP6,PFB1224SE-00P5,PFB0824DHEP0,PFB1224SE-00P6,PFB1224SE-00P0,PFB1224LE-00P0,PFB0824UHEP5,PFB0824DHEP5,PFB0824UHEP6,EFB1524HHGP5,PFB1224LE-00P6,QFR0624DHP5,PFB1224LE-00P5,EFB1524HHGP6,QFR0624DHP0,EFB1524HHGP0
德尔塔风机停产通知（最后购买日期:2023/4/18）
Delta Electronics向客户通知，由于电子元件的停产，将处理一系列风扇型号的EOL（End of Life，即停产）流程。没有替代材料或风扇可供替换。通知中列出了受影响的零件编号、生效日期、最后购买日期和最后发货日期。
台达 - FAN,风扇,GFB0412GHS-CF00,BFB0505HHA-C,PFB0612GHE-R00,AFB0924L-R00,AFB0812SH-R00,AFB0712MD-R00,AFB0912HB,AFB0612GHF-F00,AFB0612EHD-AR00,AFB0912HD,AUB0812H-A,AFB0624MD,FFB1224HH-R00,AFB0612LB,EFB0412HD-F00,AFB0612HHE-T500,AFB0612SHE-A,AFB0512VHD,BFB0724H-R00,AFB0712LB-R00,AUB0612H-A,AFB1212HHEAU5,EFB1548LG,EFB0405HD-F00,AFB0924VH-F00,AFB0612EHD-A,GFC0612DS-AQ14,AUB0912L-C,ASB0405VHA-A,AFB0712VHB,AFB0512HDW72,AFB0824GHE-R00,BFB0512L,BFB0512M,BFB0512HH-T50F,AFB0612MD-F00,AFB0824L-F00,AFB0612MB,AFB0924SH-AR00,AFB0612VHE-A,AFB0624HH-AF00,BFB0712H-R00,AFB0612MB-R00,FFB0412SHN-AF00,AFB0612EHE-AF00,BFB0712HD-F00,AFB0712HD-F00,AFB0912HHB-R00,AFB0824SH-R00,AFB0612HHB,AFB1224HE-CR00,FFB0412VHN-AR00,AFB1224LE-C,AFB1212VHE-CF00,AFB0512HB,AFB0712HHD-F00,AFB0824VH-R00,BFB1248GH-AF00,AFB0924M-F00,AFB1212HE-CF00,BFB0512VHD-R00,AFB0524HHB-R00,AFB1224VHE-CF00,AFB0948HH,AFB0624LD,AFB0712HHB-R00,AFB1224ME-C,AFB0524LB,AFB0424MB-R00,AFB0712VHB-R00,AFB0612VHD-A,AFB0612VHD-F00,AFB0912MB,AFB0612HHD-F00,AFB1224EHE-C,AFB0512MB-R00,AUB0412HDYFM,AFB0924M-R00,AFB0948H-F00,BFB0412HHA-A,AFB0612VHB-R00,FFB1448HHG,FFB0812GHE,AFB1524HH-AR00,AFB1224VHE-TC5F,AFB0612LB-F00,AFB0612SHF,AFB0624HHB-F00,AUB1212H-CK15,AFB1212SHE-CF00,AFB0912LB,AFB0912LD,AFB0912VH-R00,AFB0712VHD-F00,AFB0912LBATX,AFB0424VHB-R00,FFB0412GHN-C,BFB0512LD-R00,AFB0924HH-R00,BFB04512LA-C,AFB1512H-AF00,AFB0912GHE-TA50,AFB0505LB-R00,AFB0612HB-R00,AFB0812M-R00,AFB1212HHE-CF00,BFB0405HHA-AR00,AFB0924H-R00,EFB0812HHB-F00,AFB0612VHD-AR00,AFB0612GHE-AF00,BFB0512MA-CR00,AFB0812HHB-F00,AFB1248SHE-TC50,AFB0612HHB-R00,BFB0512HD-F00,AFB0848M,AFB0848L,AFB0848H,AFB0512LB,AFB0624VHD-AR00,AFB0948L-B,BFB1248HH-R00,AFB0848HH,AFB0612DH-TP11,AFB1224SHE-C,BFB1224HE-F00,AFB0812HH-R00,AUB0912M-C,PFB0912SHE-F00,AFB1212LE-C,AFB0824H-F00,AFB0824HH-F00,BFB0512LA-CR00,ASB0405HHA-AF00,BFB1024HHX01,BFB0712HD,EFB0405HD,AFB1212HHE-C,AFB1224HE-C,AFB0624MBAV8,BFB0512M-R00,AFB0848HH-R00,AFB1212VHE-C,AFB1224VHE-CR00,AUB0612HH-A,AFB1224SH-F00,QFR0824SH-DT50,FFC0612DE-PP01,FFB1448SHG,PFB0612UHE-R00,AFB0912HHB,BFB0512HH,AFC0912DB-F00,AFB0405MB-R00,FFB0412UHN-C,AFB0612EHF,BFB04512MA-C,AUB0812L-9X41,PFB0612UHE-T50F,AFB0912HHB-F00,AUB0912H-C,BFB0724H-F00,AFB0612HHC-R00,AFB1224HHE-C,EFB0405LD-R00,AFB0512HHB-R00,PFB0912SHE,BFB1248HH,BFB03512HHA-CR00,AUB0612L-A,AFB1212VH-R00,BFB0505HA-CF00,AFB0924H-F00,AFB1224EHE-CF00,AFB0624VHB,AFB0612EHD-AF00,AFB0805M,THB1248B-AXHG,AFB0624VHD,AFB0812H-R00,AFB0712LD-R00,AFB0812LB,BFB04512HHA-CR00,AFB0912UHE-AF00,AFB0612LD-F00,AFB0612MB-F00,BFB04512HA-C,BFB1012HH-TP48,AFB0624VH-AF00,AFB0712HHD,BFB0724H-T500,AFB1212GHE-CF00,TGD0412HS-00EA8,AFB1212GHE-C,AFB1212VHE-CR00,BFB04505HA-C,AFB1224VHE-C,AFB0948HH-F00,BFB0524M-R00,AFB1212ME-C,AFB0812HB-R00,EFB0405MD,FFB0412SHN-AR00,FFC0812DE-F00,AFB1224M-R00,AFB0824VH-F00,AFB1212HE-C,AFB0624LB-R00,AFB0948H-R00,BFB0712HD-R00,AFB0824SH-F00,FFB0412VHN-AF00,AFB0712HD-R00,FFC0912DE-TP04,TDA1348AE-EP,FFB0412HHN-BR00,AFB0812VH-R00,AFB0505HD,AFB0505HB,BFB0712M,BFB0712L,EFB0405LD,AFB0924L,BFB0712H,KFB2348HHV-F00,AFB0948L,AFB0624HD,AFB0712HB-R00,AFB0712LD,ASB0405HHA-A,PFB0912GHE-R00,AFB0624HHD,EFB0812HHB,BFB0512L-R00,EFB0405HHD,AFB0724MB,PFB0948UHE-F00,AFB0624HB-R00,AUB0612VH-AF00,FFB0412VHN-A,AFB0812MD-AR00,AFB0612HB,AFB0712HHD-R00,AFB0712VHB-F00,AFB0812VHD-AR00,AFB1212EHE-C,AFB0612HD-R00,AFB0812EHE-R00,AFB0612LB-R00,AFB0912HH-R00,AFB0848H-R00,AFB0612HHD-R00,BFB0612HB-NR00,AFB0412HHA-AR00,AFB0812SHE-R00,AFB0612VHB-F00,AFB0924HH-F00,AFB0624H-AF00,ASB0405LA-A,AFB0912LD-F00,AFB1224GHE-C,AFB0624HHD-F00,BFB0505HHA-CF00,AFB0612VHD-AF00,AFB0612SHD-AF00,AFB0912M-R00,AFB0924M-A,AFB0612UH-AR00,AFB0612MD-R00,AFB0812MB-F00,BFB0512H-R00,AFB0812LB-F00,PFB1212EHE,BFB0512HH-R00,AFB0612SHE-AF00,AFB0624VHD-F00,AFB1212SHE-C,BFB1248HH-F00,TCA1048AB0C,FFB1248EH-R00,AFB0612SHD-A,AFB0712MD-F00,BFB0512HD-R00,AFB0624VHB-R00,AFB0612VHB,AFB0612EHE-A,AUB0612M-A,BFB04512HA-CF00,AFB1224HHE-CR00,AFB0812HHB-R00,GFC0412DS-DF00,AFB0612HHB-F00,AFB0812LD-AR00,AFB0612VHF,PFB0612GHE-T500,AFB1224L-F00,AUB0612HH-AF00,AFB0912H-R00,AFB0824HH-R00,AFB0612HB-F00,FFB1224EHE-BR00
Delta‘s New Industrial DC Fans with PWBAs reducing current and increasing fan efficiency
Each fan is designed for durability and efficiency—leveraging a new structural system and motor design, with PWBAs reducing current and increasing fan efficiency. Delta industrial fans meet IP68 ratings for harsh environments, and salt spray (IEC 68252/GR 487).
工业-能源
资料详细介绍了多种型号的通风风扇，包括其尺寸、材料、额定电压、电压范围、最大转速、空气流量、压力、功率、噪音水平、防护等级、信号类型、工作温度、工作湿度和使用寿命。资料还提供了风扇的空气流量-静压特性曲线图，以便用户了解风扇在不同工作条件下的性能。
台达 - PFB0924GHEP6,PFB0824GHEP6,QFR0912GJ-00P0,PFB,QFR0812LJ-00P6,QFR0824UHP0,QFR0812LJ-00P0,PFB1224HE-00P0,QFR0624EHP6,PFB0924GHEP0,QFR0624EHP0,PFB0824GHEP0,PFB1224HE-00P6,PFB1224EHEP0,QFR0624UHP6,THB1548EG-00P0,QFR0624UHP0,THB1748MGP6,PFB0924EHEP6,QFR0912MJ-00P0,PFB1224EHEP6,QFR0824UHP6,PFB0924DHEP0,THB1548EG-00P6,PFB1224UHEP0,THB1748BGP6,EFB1524LGP0,PFB0924DHEP6,EFB1524LGP6,AFB,PFB0924EHEP0,QFR0912LJ-00P0,EFB,QFR0824HHP0,PFB0824UHEP0,EFB1524SHGP6,QFR0812MJ-00P0,QFR0824HHP6,THB,QFR0624GHP0,THD,THD0924HEP6,EFB1524SHGP0,QFR0824SHP0,QFR0812MJ-00P6,QFR0812GJ-00P6,PFB1224GHEP6,PFB1224GHEP0,QFR0624GHP6,QFR0812GJ-00P0,QFR,THB1548VG-00P0,QFR0824SHP6,THB1548VG-00P6,PFB0824DHEP0,PFB1224SE-00P6,PFB1224SE-00P0,PFB1224LE-00P0,PFB0824UHEP6,AFB0524VHDP0,PFB1224LE-00P6,EFB1524HHGP6,QFR0624DHP0,EFB1524HHGP0
台达IP68风扇系列可定制尺寸及参数，适应高度腐蚀气体环境和户外用变频器等环境
台达（DELTA）是一家为全球无刷直流风扇及散热提供解决方案的领导厂商。IP68 风扇, 其中转速往下可以做客制调整，电压亦可12/24/48 做设计变更，部分还在转量产阶段。客户可针对需求提出对应风扇尺寸以及所需特性参数。
电子商城
现货市场
服务
可定制DC风扇的尺寸范围：15mm~225mm；转速：≤16500 RPM；噪音：≥10.4dB，还可定制厚度、电压、风量、风压等参数，符合 RoHS 标准。
最小起订量：1 提交需求>
可定制EC风扇的尺寸/噪音/风量/风压/转速等性能参数，尺寸覆盖120mm~910mm,电压范围200-480V。
最小起订量：10000 提交需求>
